03 Data Modeling

Goals

In this lab we are going to:

  • Gain an understanding of how Django's Object Relational Mapper works
  • Modify the data model
  • Create some data with Django Admin

Entity relationships

When building an API it's important to get your data model right early on. Unwinding mistakes down the road is difficult. Because it's hard to theorize an entire problem space, start small and iterate as you learn more.

Entity is a fancy synonym for noun or object. We use them to model the relationships between things. For our API we have a simple data model that lets users configure weather alerts.

erDiagram
  User {
    int id PK
    string username
  }
  WeatherAlertConfig {
    int id PK
    int user_id FK
    string state_abbreviation "The state where we want to see alerts"
    enum severity "NEW! You're going to add me"
  }
  User ||--o{ WeatherAlertConfig : "has many"

A couple of notes on the diagram:

  • Each entity has an id field that represents its primary key. Django will automatically assign this to every model you create.
  • WeatherAlertConfig has a user_id foreign key that points back to the owning User. This forms a many-to-one relationship.

Our job today will be to add the new severity field to the WeatherAlertConfig.

Mapping database records to Python objects

Django comes with an Object Relational Mapper (docs). It allows us to model database tables as Python objects, and then automatically generate the necessary changes in the database to store data.

Aside

It's hard to talk about data modeling without talking about SQL. Knowing SQL will make you a better backend developer. Unfortunately we don't have time to cover it today. In your free time check out a tutorial like sqltutorial.org.

Let's look at the model for our WeatherAlertConfig entity, which lives in weather/models.py.

class WeatherAlertConfig(models.Model):
    """Configuration for an alert that a user is interested in."""

    user = models.ForeignKey(User, on_delete=models.CASCADE)
    state_abbreviation = models.CharField(max_length=2)
    # TODO: below we'll add severity!

This model maps onto the entity diagram above. A couple of things to note:

  • user is a ForeignKey onto the User model. Django will automatically create the underlying user_id foreign key in the table, and will make the related User object available at this property on instances of the model.
  • We don't need to specify an id primary key, because the underlying models.Model base-class adds it for us.
  • Use descriptive names for your fields. For example, state may be confusing because it's not clear whether it's the full-state, or just the two-letter state_abbreviation like we've indicated.

Tweak the model and migrate

Right now, our users can tell the API which states they're interested in getting weather alerts for, but the National Weather Service API that we rely upon offers a few more things we can use to filter alerts. To see what's available go to the National Weather Service API docs > Specification > expand GET /alerts.

After consulting with users, we've found out they would also like to include the severity field to avoid being inundated with low risk alerts. This is an enum field, which means it can hold one of a set number of values:

  • Extreme
  • Severe
  • Moderate
  • Minor
  • Unknown

Add severity field

Let's wire this new severity field into the model.

  1. Open weather/models.py.
  2. Add a new class above WeatherAlertConfig with the following:
    class Severity(models.TextChoices):
    EXTREME = "Extreme"
    SEVERE = "Severe"
    MODERATE = "Moderate"
    MINOR = "Minor"
    UNKNOWN = "Unknown"
  3. Now, add a new field to the WeatherAlertConfig model that maps the text choices to a column in the database:
    severity = models.CharField(
    max_lenth=10,
    choices=Severity.choices,
    # Below options allow users to omit a severity if they want everything.
    blank=True,
    null=True,
)

Afterward, weather/models.py should look similar to below:

from django.contrib.auth.models import User
from django.db import models


class Severity(models.TextChoices):
    EXTREME = "Extreme"
    SEVERE = "Severe"
    MODERATE = "Moderate"
    MINOR = "Minor"
    UNKNOWN = "Unknown"


class WeatherAlertConfig(models.Model):
    """Configuration for an alert that a user is interested in."""

    user = models.ForeignKey(User, on_delete=models.CASCADE)
    state_abbreviation = models.CharField(max_length=2)
    severity = models.CharField(
        max_length=10,
        choices=Severity.choices,
        # Below options allow users to omit a severity if they want everything.
        blank=True,
        null=True,
    )

Migrate changes

At this point we've made changes to our data model, but need to reflect those changes into the database. This is where migrations come into play. Django will inspect your models and the set of migrations, and then generate a new migration that closes any gaps between the two. To do this we'll use management commands with Django.

# diff weather/models.py and tables
docker-compose exec hackduke_django python manage.py makemigrations

# apply changes
docker-compose exec hackduke_django python manage.py migrate

Django Admin

Now that we've modeled our changes and applied them to the database, let's see what it looks like:

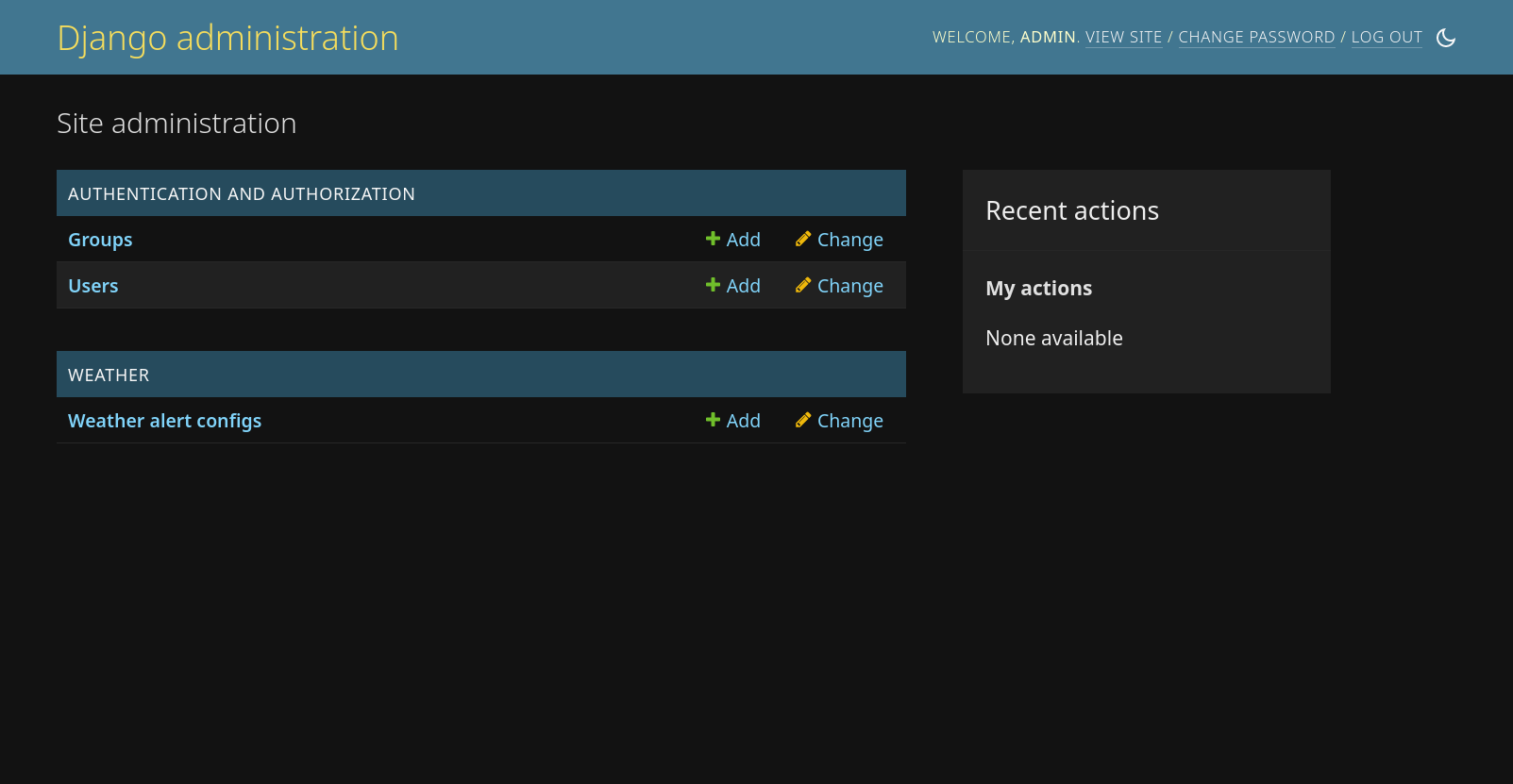

  1. Navigate to Django Admin and log in with your superuser (admin) if necessary: http://127.0.0.1:8000/admin

    Admin home

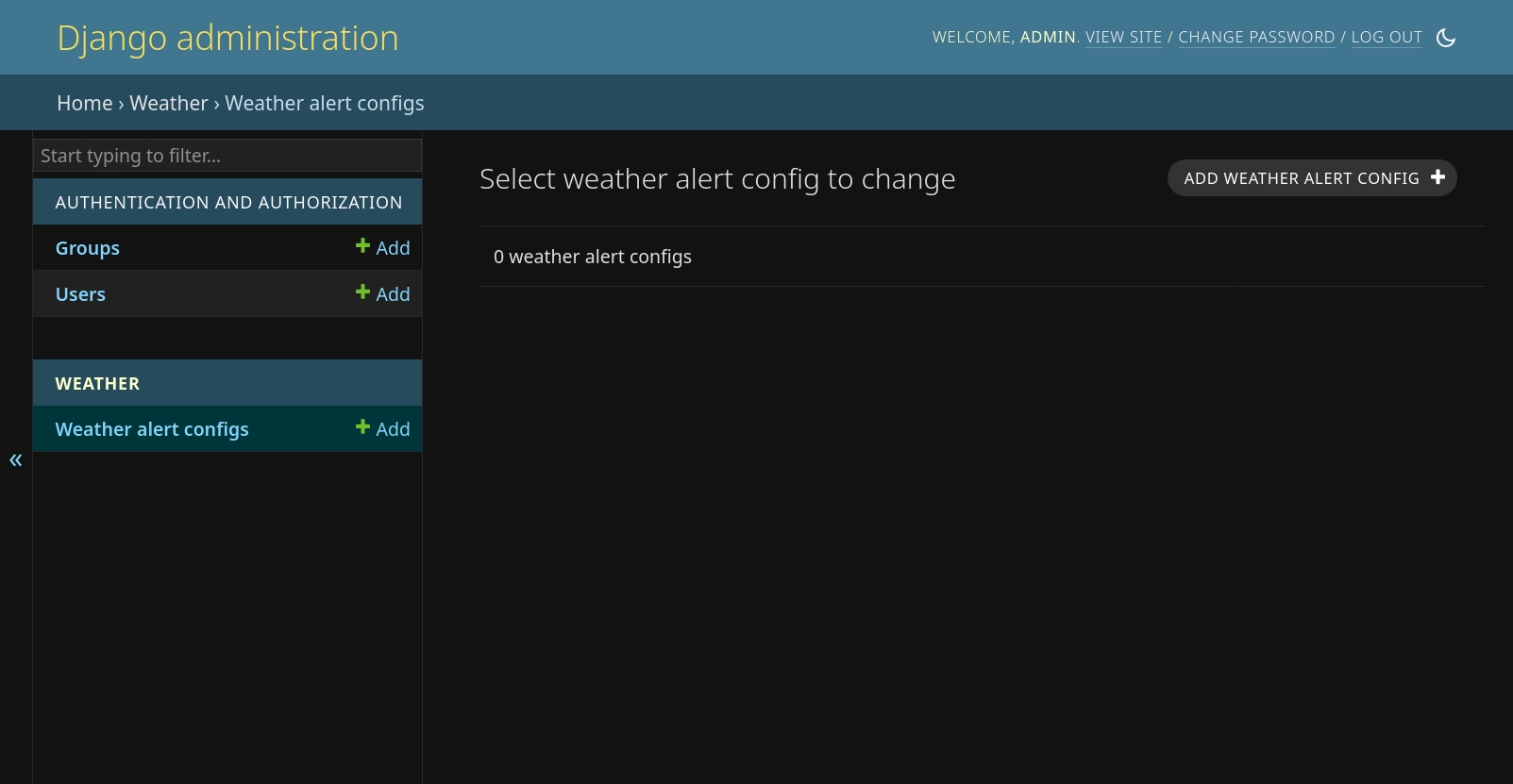

  2. Click on Weather alert configs and then ADD WEATHER ALERT CONFIG (top right)

    Weather alert config

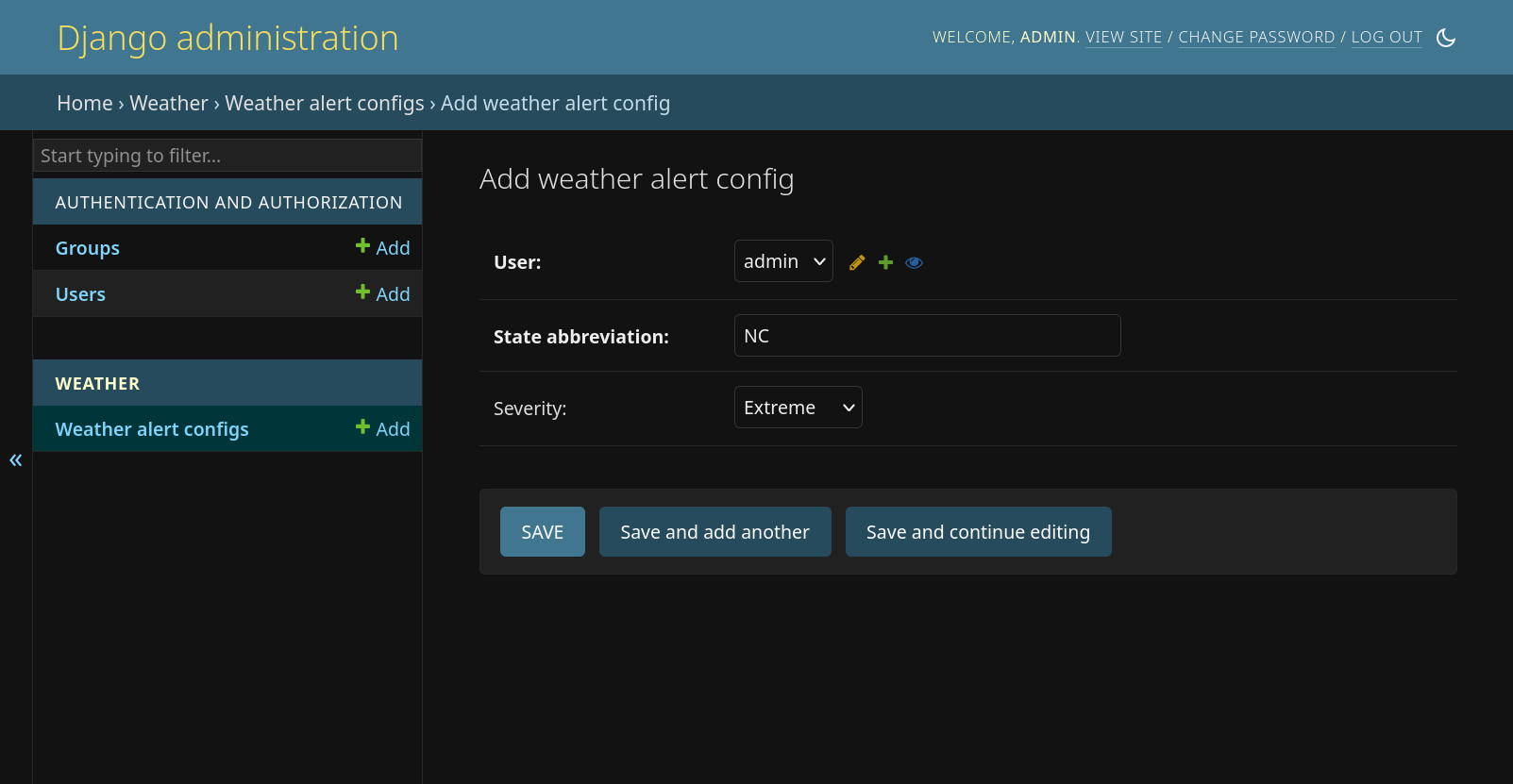

  3. Populate and save the alert (note that it automagically includes a dropdown for severity)

    Add weather alert config

  4. The new alert appears in the list

    Weather alert config list

Querysets

In Django, querysets are objects that build up a query to the database. This lets you do things like construct a set of filters using inputs from different places.

To see them in action, check out weather-alerts list endpoint in weather/views.py, specifically the last line of this function:

@router.get("/alerts", response=list[WeatherAlertResponse])
def list_weather_alerts(request) -> list[WeatherAlertConfig]:
    return WeatherAlertConfig.objects.filter(user=request.auth)

WeatherAlertConfig.objects returns a queryset. That itself has a .filter() method we use to restrict the list of alerts to the current user. You can chain these together and pass them around. This is simple example; see the official Django querying docs for more complex ones.
