04 API Endpoints

Goals

Today we're going to learn how to:

Interact with our API
Authenticate requests
Modify endpoints

This lab will also give you a quick overview of the Django Ninja plugin that we're using for the API. It provides simple request deserialization and response serialization using Python type annotations. For in depth info, consult the Django Ninja docs.

API docs viewer

Django Ninja provides a documentation viewer out of the box that we can use to see the shapes of API requests and responses, and interact with endpoints. Make sure you're running the API (docker-compose up -d), and then navigate to the following URL to view the docs: http://127.0.0.1:8000/api/docs.

API docs

JWT authentication

Without going into too much detail, the API uses JSON Web Tokens to authenticate requests.

Note

If you're curious how the API enforces JWT authentication, check out auth/backends.py, config/urls.py and the Django Ninja Auth docs.

In order to call endpoints you'll need to generate one using your superuser (admin) credentials you previously set up, and tell the docs site to use it.

Click into the POST /api/auth/login endpoint in the docs, press Try it out:
Populate your superuser username (admin) and password in the Request body, then press Execute
Copy the JWT out of the Response body > access_token field
Scroll back to the top of the page, click Authorize, and paste the JWT into the text box that appears

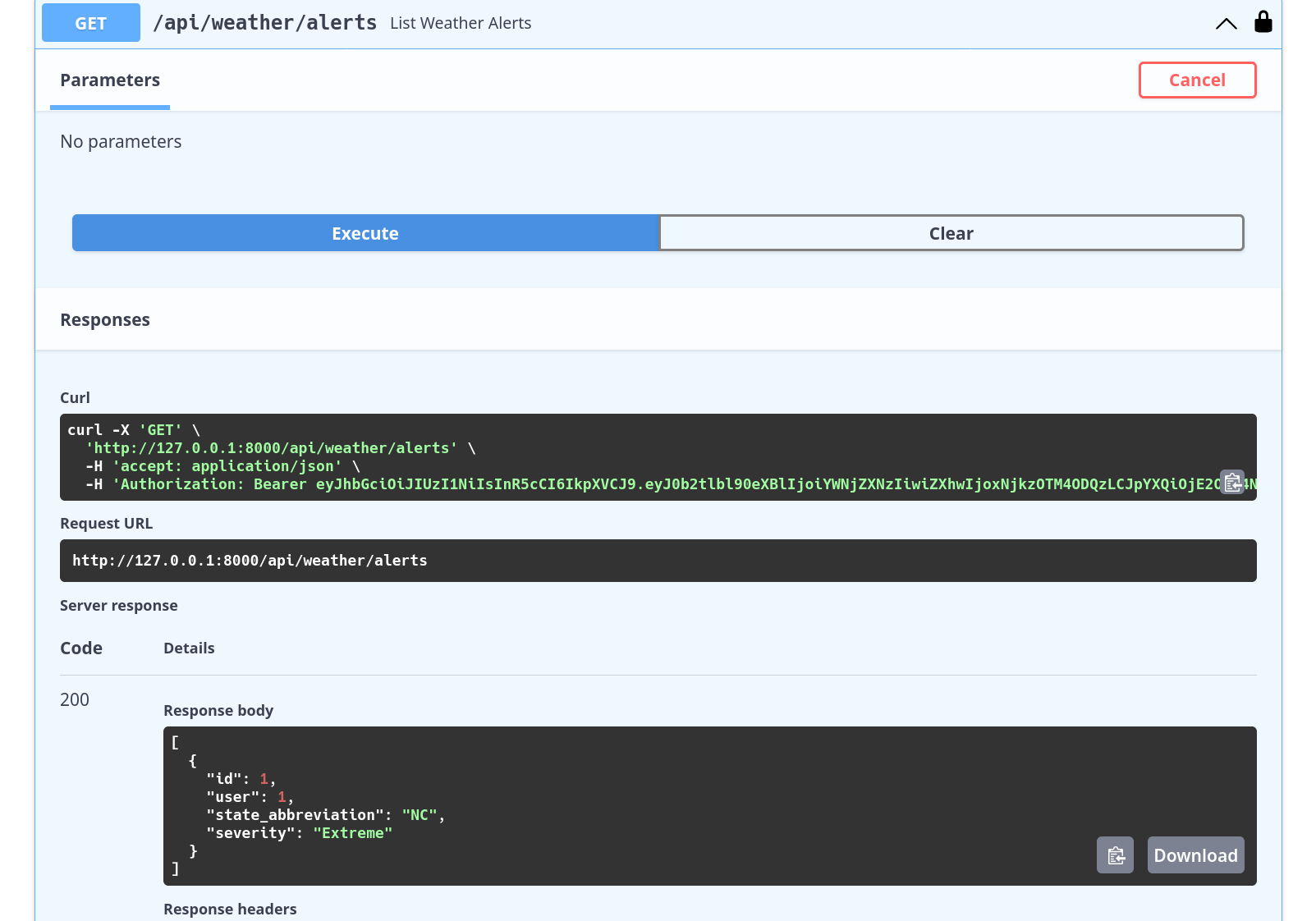

Now you're ready to call the other endpoints. Scroll down and execute the GET /api/weather/alerts endpoint. You should see the one you created in Django Admin earlier

Warning

The docs site doesn't save your login info when you reload it. So, to save some time it's a good idea paste your JWT into your notes for quick reference. It will be good for 24 hours from the time you generate it.

Working with endpoints

Now that we're set up to make calls to the API, let's learn some more about how to expose endpoints with Django Ninja.

Routers and URLs

Two files you'll see in every Django project are urls.py and views.py. Django uses URLs to map URL paths to views that you've defined. Django Ninja takes this a step further, and introduces the concept of a Router that handles sub-paths for a corner of your API.

Consider this example from config/urls.py.

from auth.views import router as auth_router
from weather.views import router as weather_router

api = NinjaAPI(auth=JWTAuthRequired())
api.add_router("/auth/", auth_router)
api.add_router("/weather/", weather_router)

urlpatterns = [
    path("status/", include("health_check.urls")),
    path("admin/", admin.site.urls),
    path("api/", api.urls),
]

It exposes our status page, admin page, and the API. But, it leaves routing anything under api/ to Django Ninja. We've included two routers under the Ninja API that will handle requests to /api/auth/ and /api/weather/.

Views and (de)serialization

Now that we have an idea of how Django configures GET /api/weather/alerts, how do we actually write the code that handles requests to that path? To see, checkout weather/views.py.

router = Router()

@router.get("/alerts", response=list[WeatherAlertResponse])
def list_weather_alerts(request) -> list[WeatherAlertConfig]:
    return WeatherAlertConfig.objects.all()

Here we've created the router that we wired into Django Ninja above, and tell it that GET requests to /alerts (under /api/weather) should be handled by the list_weather_alerts function.

But, what does the function actually do? It loads all WeatherAlertConfig records from the database and returns them to the user. This is the same model that we modified in the prior lab.

Ok so, how does Django Ninja actually convert the model instances into JSON that the browser understands? This is part of the magic of Django Ninja. In the call to the @router.get decorator, we say the response will be a list of WeatherAlertResponses:

class WeatherAlertResponse(ModelSchema):
    class Config:
        model = WeatherAlertConfig
        model_fields = "__all__"

Django Ninja provides a special ModelSchema class that we can inherit to define the shape our requests and responses. In some cases you manually set the fields, but here we simply tell it to mirror the shape of our model. Django Ninja handles the rest.

Update the API

Now it's your turn to update the API. Let's handle the new severity field we added to WeatherAlertConfig in the last lab.

Wire `severity` into endpoints

Within weather/views.py, notice that we have CRUD endpoints that line up with their corresponding HTTP methods. We'll need to make sure we handle the new severity field in these.

The WeatherAlertRequest schema defines the shape of requests that modify a weather alert config. Add severity here so the API includes it when creating and updating alerts:

from .models import Severity

class WeatherAlertRequest(Schema):
    state_abbreviation: str
    severity: Severity

Endpoints that rely on this schema will automatically have access to the new severity field when working with requests.

Update `service` call

services are not a Django concept, but are a good place to drop complex business logic and interactions with third parties. For example, the API has a NationalWeatherService class in weather/services.py that handles interactions with the National Weather Service API. Let's get that working with the new severity field.

First, update _get_alerts to include the severity:

def _get_alerts(self, area: str, severity: str, limit: int) -> dict:
    """Fetches alerts from the National Weather Service API."""
    res = requests.get(
        self.ALERTS_URL,
        params={"area": area, "severity": severity, "limit": limit},
    )
    res.raise_for_status()  # Raises error if API returned HTTP 4XX or 5XX status.
    return res.json()

Next, update the cache key we use to ensure the API caches repeated calls to the National Weather Service API:
```
ALERTS_CACHE_KEY_TEMPLATE: str = f"{__name__}.alerts.{{area}}.{{severity}}.{{limit}}"
```

Finally, update the call to fetch and cache the National Weather Service data:

alerts = cache.get_or_set(
    self.ALERTS_CACHE_KEY_TEMPLATE.format(
        area=config.state_abbreviation,
        severity=config.severity,  # Update here
        limit=limit,
    ),
    default=partial(
        self._get_alerts,
        area=config.state_abbreviation,
        severity=config.severity,  # And here
        limit=limit,
    ),
)

Solution

Once you're done with the edits, weather/services.py should look something like this:

import logging
from enum import Enum
from functools import partial
from typing import Optional

import requests
from django.core.cache import cache
from ninja.schema import Schema

from .models import WeatherAlertConfig

logger = logging.getLogger(__name__)


class WeatherAlertStatus(str, Enum):
  ACTUAL = "Actual"
  EXERCISE = "Exercise"
  SYSTEM = "System"
  TEST = "Test"
  DRAFT = "Draft"


class WeatherAlertSeverity(str, Enum):
  EXTREME = "Extreme"
  SEVERE = "Severe"
  MODERATE = "Moderate"
  MINOR = "Minor"
  UNKNOWN = "Unknown"


class WeatherAlert(Schema):
  """Lightweight entity based on Alert from Weather API.

  For docs see Schemas > Alert: https://www.weather.gov/documentation/services-web-api
  """

  id: str
  status: WeatherAlertStatus
  severity: WeatherAlertSeverity
  headline: str
  description: str
  instruction: Optional[str]


class NationalWeatherService:
  """Utilities to retrieve data from the National Weather Service API.

  For docs see: https://www.weather.gov/documentation/services-web-api
  """

  ALERTS_URL: str = "https://api.weather.gov/alerts"
  ALERTS_CACHE_KEY_TEMPLATE: str = f"{__name__}.alerts.{{area}}.{{severity}}.{{limit}}"

  def _get_alerts(self, area: str, severity: str, limit: int) -> dict:
      """Fetches alerts from the National Weather Service API."""
      res = requests.get(
          self.ALERTS_URL,
          params={"area": area, "severity": severity, "limit": limit},
      )
      res.raise_for_status()  # Raises error if API returned HTTP 4XX or 5XX status.
      return res.json()

  def get_alerts(
      self, config: WeatherAlertConfig, limit: int = 10
  ) -> list[WeatherAlert]:
      """Fetches alerts for a given WeatherAlertConfig."""
      alerts = cache.get_or_set(
          self.ALERTS_CACHE_KEY_TEMPLATE.format(
              area=config.state_abbreviation,
              severity=config.severity,  # Update here
              limit=limit,
          ),
          # default can be a value or a zero-argument callable. "partial" takes a callable
          # (self._get_alerts) and its arguments (anything, but "area" and "limit" in this case),
          # and returns a new callable. This defers execution of self._get_alerts with the
          # given arguments until partial's return-value itself is called.
          default=partial(
              self._get_alerts,
              area=config.state_abbreviation,
              severity=config.severity,  # And here
              limit=limit,
          ),
      )

      weather_alerts = []
      for alert_data in alerts.get("features", []):
          properties = alert_data["properties"]
          weather_alerts.append(
              WeatherAlert(
                  id=properties["id"],
                  status=WeatherAlertStatus(properties["status"]),
                  severity=WeatherAlertSeverity(properties["severity"]),
                  headline=properties["headline"],
                  description=properties["description"],
                  instruction=properties["instruction"],
              )
          )

      if weather_alerts:
          logger.debug("Found alerts.", extra={"count": len(weather_alerts)})
      else:
          logger.warning("Got no weather alerts!", extra={"area": config.state_abbreviation})

      return weather_alerts

Call alerts endpoint

Let's confirm that our update worked. Go back to the API docs ( http://127.0.0.1:8000/api/docs). You may need to Authorize again if you've reloaded the page.

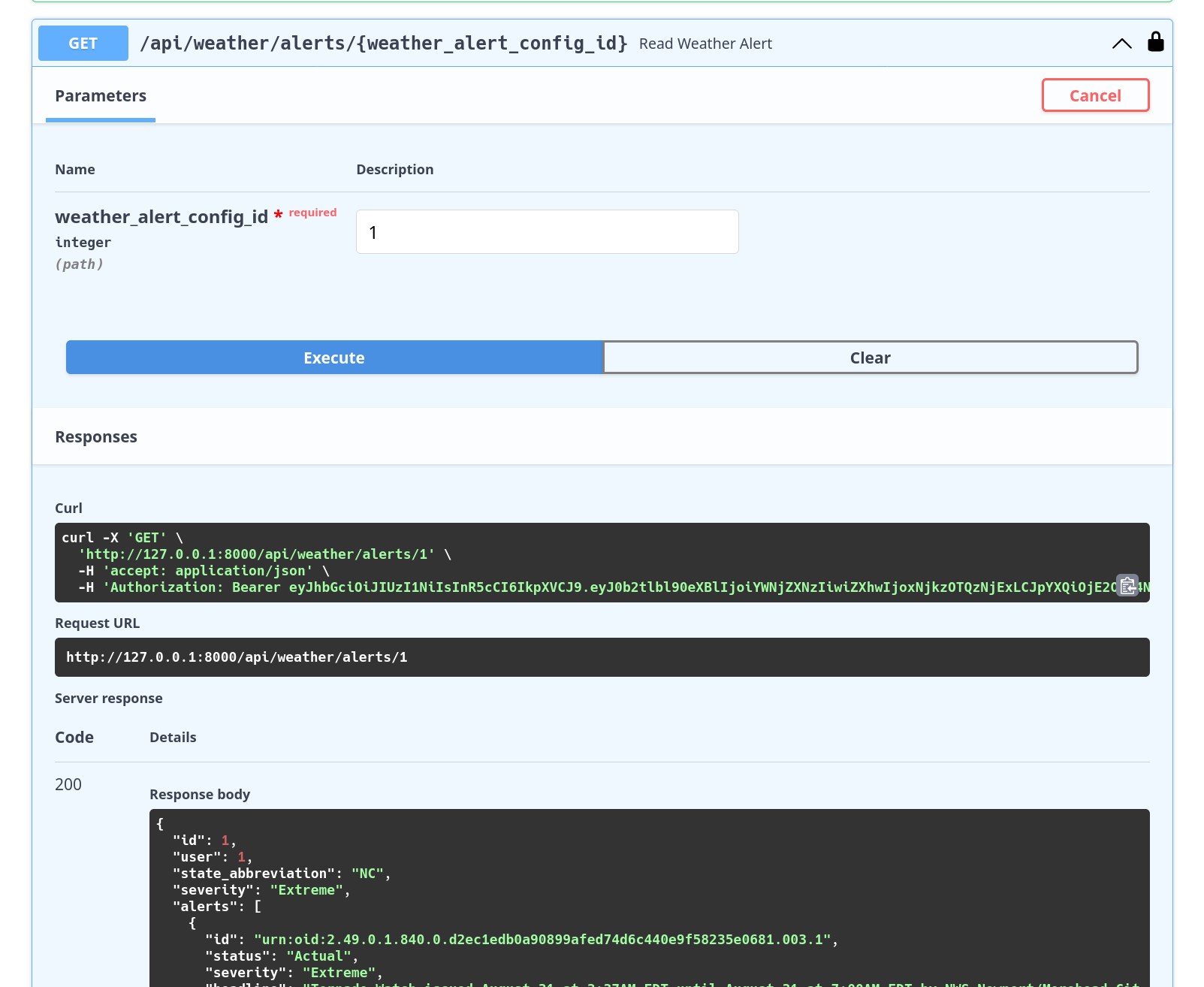

Scroll down to GET /api/weather/alerts/{weather_alert_config_id}.
Click Try it out, and provide a weather_alert_config_id of 1.
Observe that you get weather alerts for the severity you configured in your model (e.g. Extreme).
